Wall Mounted 2 Port Fiber Optic Termination Box Outlet SC Duplex Adapter Loaded

Foc Communication CO.,LTD

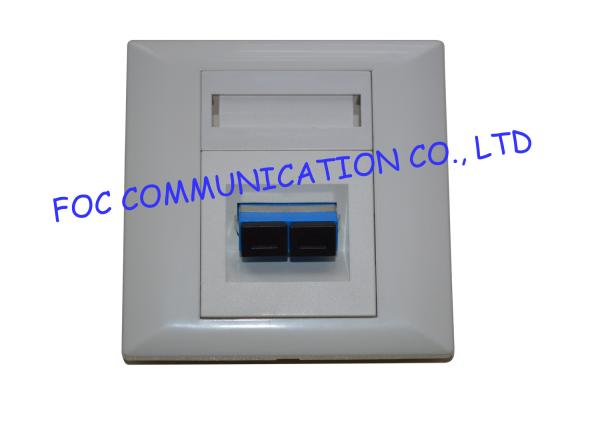

Wall Mounted 2 Port Fiber Optic Termination Box Outlet SC Duplex Adapter Loaded

Brand Name : FOCABLE

Model Number : WP-SCDPWH

Certification : RoHS Compliant, ISO Certificate

Place of Origin : China

MOQ : 5PCS

Payment Terms : Western Union, T/T

Supply Ability : 5000PCS/MONTH

Packaging Details : 1PCS/BOX

Mount Type : Wall Mount

Material : ABS or PC Plastic Material

Port : 2Port

Connector : SC, FC, LC, ST, E2000

Contact Now

Wall Mounted 2 Port Fiber Optic Termination Box Outlet SC Duplex Adapter Loaded

Optical termination outlets open up brand new possibilities to service subscribers.

Fiber Optic Outlet Wall Plate is perfect for consolidating and protecting fiber cable from damage while distributing the connection to multiple workstations.

There are SC, FC, ST, LC Wall plates outlet for networks that use fiber-optic cabling. The back end of the connector joins a horizontal cable that runs inside the wall or through a false ceiling or floor to a patch panel in the wiring closet for that floor. Computers are then connected to the wall plate by a short unshielded twisted-pair (UTP) cable called a drop cable. Wall plates typically come in mono-port, dual-port, and quad-port configurations.

Indoor Fiber Optc Wall Plates Outlets are compact fiber organizers used to create a fiber demarcation point inside the home or office. Internal fiber routing features control bend radius and allows for slack storage outside of the wall cavity.

Specific designs also provide for splicing inside the wall plate. The wall plate consists of flame retardant compounds, easy to install and is capable of being mounted directly to a standard junction box or a wall.

Features

  • Accommodates 2 ST or FC fiber adapters

  • Provides transition from horizontal fiber cable to workstation patch cord

  • Compatible with No Polish Connectors

  • Measures 86 mm x 86 mm

  • Fiber termination point for SC/UPC connectors

  • Used near an ONT or desktop box

  • Houses slack fiber

  • Used for FTTH, FTTD solutions
  • Used for wall-mounted and rack-mounted applications
  • Flame retardant ABS and PC material
  • Designed to store a pre-terminated pigtail for connection to a mating adapter

  • Internal Fiber routing provides bend radius control

  • Tool-less sliding door provides easy access for fiber connection or removal

Applications

  • Fiber Optic Communication System
  • FTTX (FTTH, FTTD, FTTN, FTTP and so on)
  • Optical Active Component and Equipment
  • LAN, WAN
  • Military Industry
  • CATV

Specifications

Color White or ivory
Connector type SC, FC, LC, ST
Product Type Outlet
Solution for

Access Network: FTTH/FTTB/CATV,‎

Enterprise Network: POLS

Wall Mounted 2 Port Fiber Optic Termination Box Outlet SC Duplex Adapter Loaded

Fiber Optic Wall Plate Outlet, Optical Termination Outlet, FTTH outlet plate, Fiber Optic Wall Outlet
